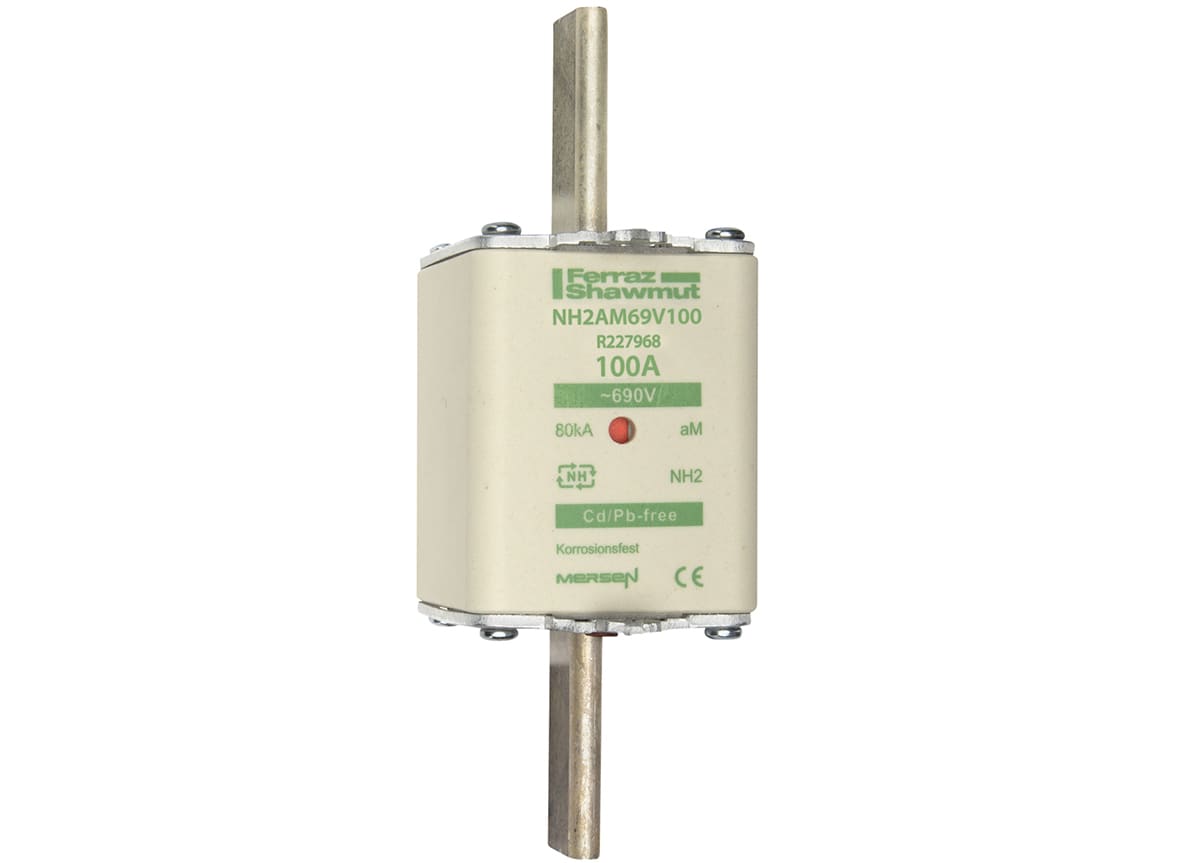

MERSEN - FUS. NH BT TAGLIA 2 - 690VAC AM 100A

copiacopia
MERSEN - FUS. NH BT TAGLIA 2 - 690VAC AM 100A

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • Dimensione - HPC2

  • classe di funzionamento - AM (protezione parziale commutatori)

  • tensione di dimensionamento - 690 V

  • corrente di dimensionamento - 100 A

  • linguette in metallo isolate (IMGL) - no

Imballaggio e Condizioni

  • 1 PZ

  • Prodotto a catalogo

EAN

8430399025230

Codice Sacchi

MER227968

Cod. produttore

R227968

Codice Metel

XESR227968

Dimensione:

HPC2

classe di funzionamento:

AM (protezione parziale commutatori)

tensione di dimensionamento:

690 V

corrente di dimensionamento:

100 A

linguette in metallo isolate (IMGL):

no

potere di interruzione nominale:

80 kA

esecuzione indicatore:

altri

The NH system is classified among plug-in fuse systems and is composed of: fuse-base (possibly including terminal covers and phase barriers) fuse-link with blade contact fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current it must be handled by a qualified professional. Type aM NH fuse-links are partial-range breaking capacity fuse-links, used to protect motor circuits as they are strongly current-limiting and have low power losses. They interrupt currents from 6.3 times In up to their maximum breaking capacity and are therefore suited for short-circuit protection only. They must be associated with other switchgear for protection against overloads. These fuse-links can have a rated current equal to the motors nominal current.
