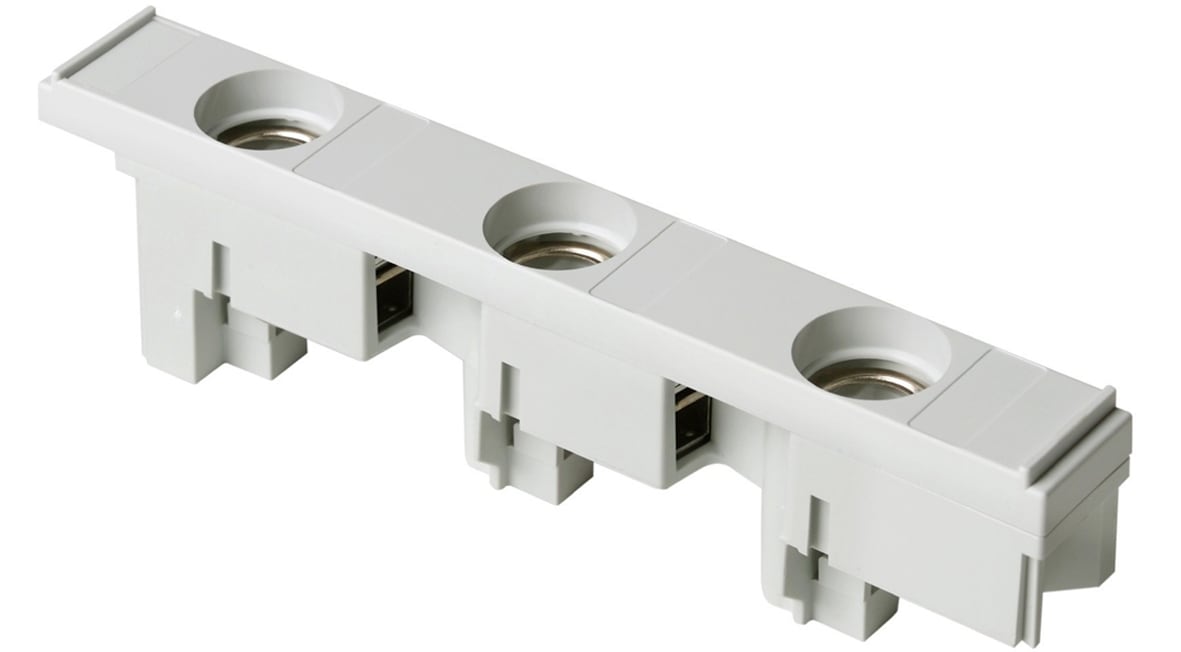

MERSEN - MULTIFIX® 60mm D0 Vertical Fuse Bases with cover

MULTIFIX® 60 is a system for energy distribution comprising a variety of modular combinable components. The energy distribution is carried out via copper busbars in a 60 mm busbar system up to 630 A, 400 V AC, 500 V AC, 690 V AC, 45–62 Hz. Short circuit withstand tested to VDE 0660 part 500 and IEC 60439-1. MULTIFIX® 60 is suitable for triple pole, quadruple pole and quintuple pole applications. The components of the MULTIFIX® 60 system are mounted directly without drilling. This method offers high flexibility for extension and alteration of existing installations - reduced installation time. D02-vertical switch fuse disconnector 63A, 400VAC, triple pole is installed on to 60 mm busbar directly by snap in mode and automatic interlocking. It is designed for busbars with a width of 12 to 30 mm and a thickness of 5 to 10 mm. Width of switch is only 27 mm which allows space saving, system compatible installation. The Plug technique to EN 50110-1 allows installation without screw caps.
