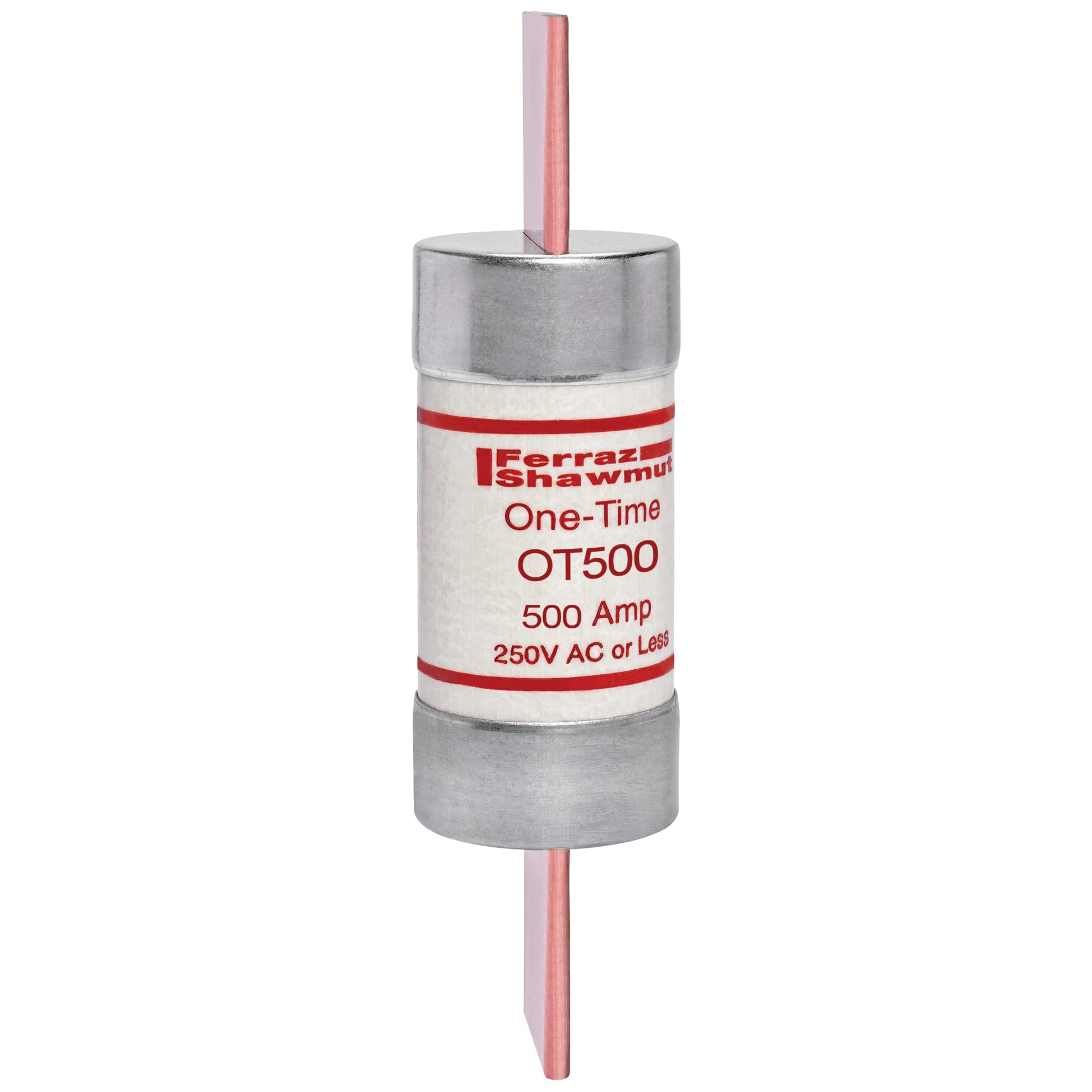

MERSEN - 250V 500A 10 3/8X2 9/10 K5 FUS

copiacopia
MERSEN - 250V 500A 10 3/8X2 9/10 K5 FUS

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • classe di funzionamento - altri

  • corrente di dimensionamento - 500 A

  • potere di interruzione - 50 kA

  • caratteristica di intervento - K5

  • frequenza d’esercizio - 48 ÷ 62 Hz

Imballaggio e Condizioni

  • 1 PZ

  • Prodotto a catalogo

EAN

782001700546

Codice Sacchi

MEOT500

Cod. produttore

OT500

Codice Metel

XESOT500

classe di funzionamento:

altri

corrente di dimensionamento:

500 A

potere di interruzione:

50 kA

caratteristica di intervento:

K5

frequenza d’esercizio:

48 ÷ 62 Hz

One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.
