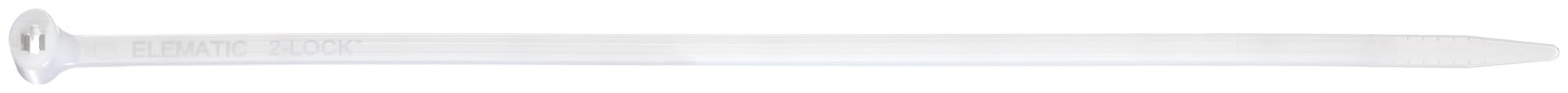

ELEMATIC - FASCETTA 2-LOCK PA6.6 NATURALE 360x7,5
Accedi per visualizzare prezzi e disponibilità
Caratteristiche principali
larghezza della banda - 7.5 mm
lunghezza nastro - 360 mm
colore - neutro
Resistenza alla trazione min. - 780 N
temperatura d’esercizio - 40÷85 °C
Imballaggio e Condizioni
1 M
Prodotto a catalogo
EAN
8016650064226
Codice Sacchi
WI1227
Cod. produttore
1227
Codice Metel
ITP1227
larghezza della banda:
7.5 mm
lunghezza nastro:
360 mm
colore:
neutro
Resistenza alla trazione min.:
780 N
temperatura d’esercizio:
40÷85 °C
temperatura di montaggio:
-40÷60 °C
trasparente:
No
classe di infiammabilità del materiale isolante secondo UL 94:
V2
diametro max. del fascio:
100 mm

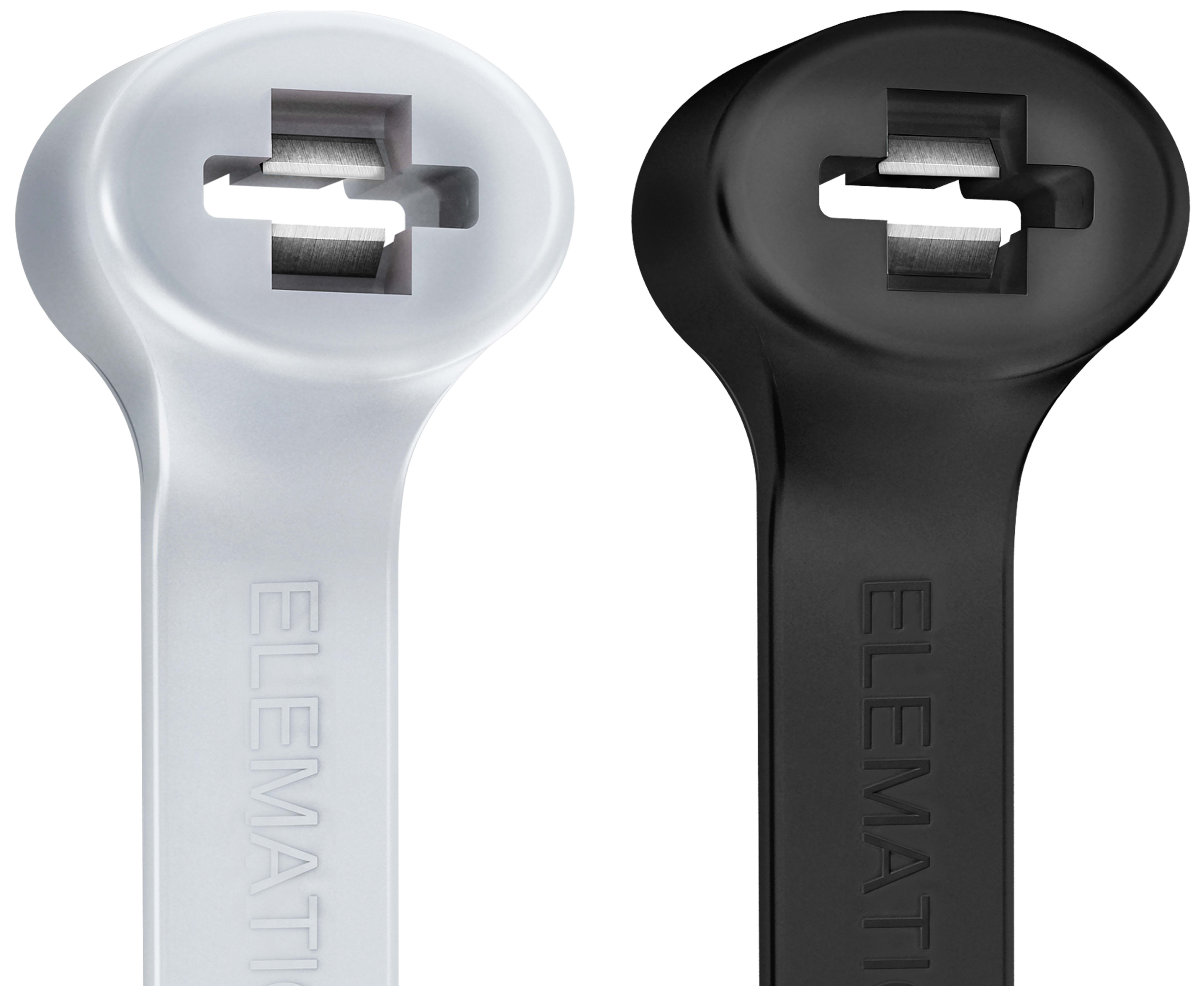

Professional cable ties, in polyamide 6.6, having an innovative double locking system in stainless steel: maximum performance and reliability. The special AISI 316 stainless steel locking system, directly incorporated into the head during the injection manufacturing process, allows the highest preformances and reliability. The double tooth mechanism allows a double locking, on both side of ties, for an ultimate tightening of the bundles. Perfect wiring: the smooth profile without racks offers infinite adjustment along the length of the tie and always a correct tensioning for any bundling diameters. Resistance and reliability at low operating temperature up to -40 ° C. 2-LOCK™ cable ties, in black color, are manufactured of special UV-resistant polyamide, for extreme outdoor applications . 2-LOCK™ cable ties are packed in an innovative resealable bag: this avoids any dispersion after the first opening, maintaining the superior characteristics of the ties. Compliant with EN 45545-2: 2013 + A1: 2015 for black 2-Lock™, codes 1303-1327. Halogen free. Electrical systems. Industrial cabling. Automotive wiring. Railway industry. Shipbuilding industry. Electrical cabinets. Special applications. Outdoor facilities. Photovoltaic systems.
Scheda tecnica
Scarica documento
Dichiarazione DOC CE (Declaration of conformity)
Scarica documento
