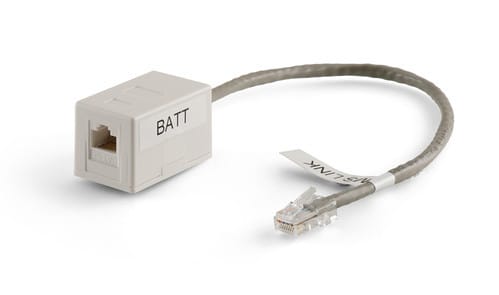

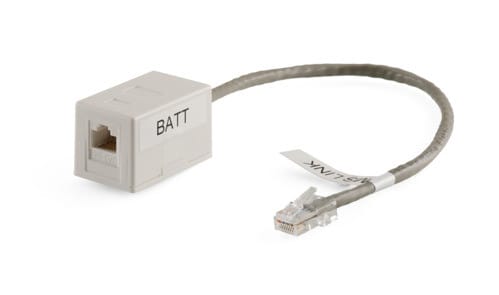

ALPHA ELETTRONICA - Adattatore BMS per inverter KEPH e batteria BLF-G (pin-out GSL)

PINOUT Connettori BMS-Link TO BMS:

1. +5Vdc

2. +5Vdc

3. RS485 B

4. RS485 B

5. RS485 A

6. RS485 A

7. GND

8. GND



PINOUT Connettori Batteria

Connettore RJ45 CAN / RS485:

1. RS485 B2

2. RS485 A2

3. GND

4. CANH

5. CANL

6. GND

7. RS485 A2

8. RS485 B2
