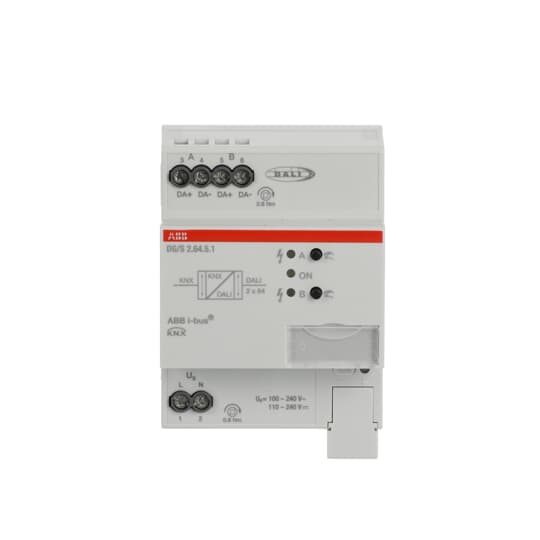

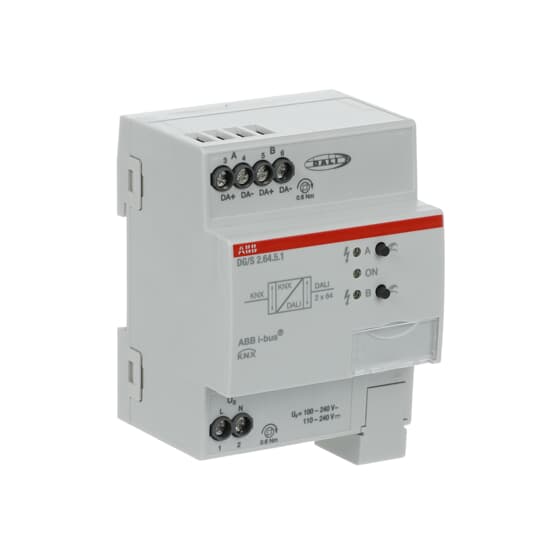

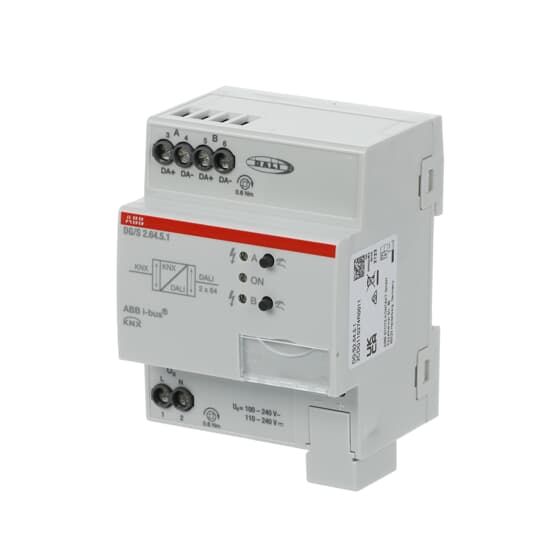

ABB - DG/S2.64.5.1 DALI Gateway Premium 2 CAN.

For controlling DALI devices via the ABB i-bus® KNX. Two DALI outputs for up to 2 x 64 DALI slaves. DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI slave (2 x 64), with lighting groups (2 x 16), together in broadcast or per scenes (2 x 16). DALI devices type DT1 (Self-contained emergency converter acc. EN 62386-202) and type DT8 (colour temperature Tc / tunable white acc. EN 62386-209) will be supported. Extensive fault and error messages are available. By means of KNX and DT1 converter different emergencytests (e.g. function and duration test) can be triggered, test results are transferred back to KNX. With DT8 devices Dim2Warm, HCL, set and dim colour temperature are possible. Slave-, staircase-, force-, block- and scene- function are integrated. Feedback is sent. DALI telegram rate can change.For diagnostic use and individual change of the DALI address or group assignment a separate Software-Tool is available.
