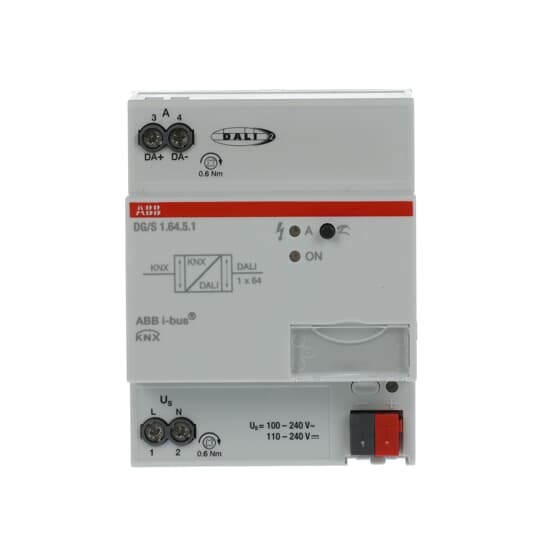

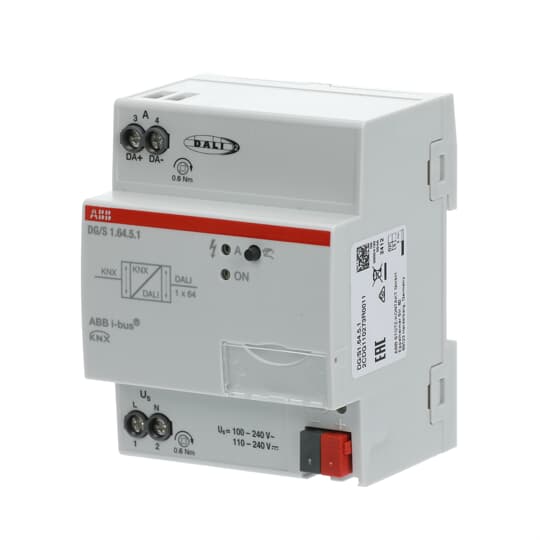

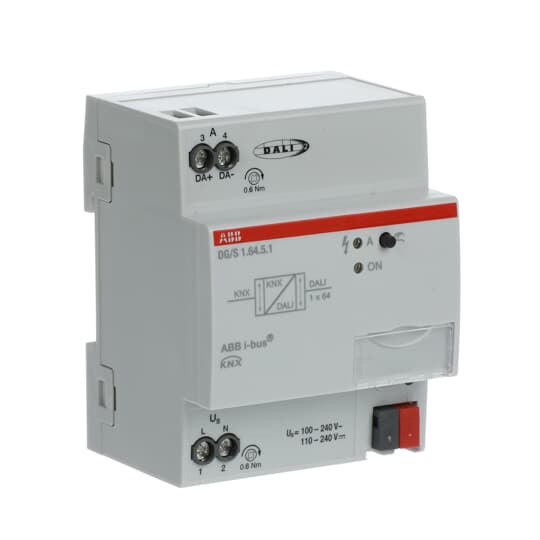

ABB - DG/S1.64.5.1 DALI Gateway Premium 1 CAN.

ABB S.P.A.
copiacopia

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • Sistema bus EIB/KNX -

  • Sistema bus radio - No

  • Radio bidirezionale - No

  • Tipo di montaggio - AMD

  • Numero moduli DIN - 4

Imballaggio e Condizioni

  • 1 PZ

  • Prodotto a catalogo

EAN

4016779067201

Codice Sacchi

EL2CDG110273R0011

Cod. produttore

2CDG110273R0011

Codice Metel

ABB2CDG110273R0011

Sistema bus EIB/KNX:

Sistema bus radio:

No

Radio bidirezionale:

No

Tipo di montaggio:

AMD

Numero moduli DIN:

4

Protezione contro lo smontaggio:

No

Aggiornabile:

In funzione del provider:

No

Visualizzazione:

No

Web server:

No

Interfaccia radio:

No

Interfaccia IR:

No

Grado di protezione (IP):

IP20

For controlling DALI devices via the ABB i-bus® KNX. One DALI output for up to 64 DALI slaves. DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI slave (64), with 16 lighting groups, together in broadcast or per scenes (16). DALI devices type DT1 (Self-contained emergency converter acc. EN 62386-202) and type DT8 (colour temperature Tc / tunable white acc. EN 62386-209) will be supported. Extensive fault and error messages are available. By means of KNX and DT1 converter different emergency tests (e.g. function and duration test) can be triggered, test results are transferred back to KNX. With DT8 devices Dim2Warm, HCL, set and dim colour temperature are possible. Slave-, staircase-, force-, block- and scene- function are integrated. Feedback is sent. DALI telegram rate can change. For diagnostic use and individual change of the DALI address or group assignment a separate Software-Tool is available.
