PANDUIT - CAPOCORDA SVASATO PER CAVO FLESSIBILE, D

copiacopia

Accedi per visualizzare prezzi e disponibilità

Imballaggio e Condizioni

  • 1 PZ

  • Prodotto a catalogo

EAN

74983753130

Codice Sacchi

PTLCCF2/0-12-X

Cod. produttore

LCCF2/0-12-X

Codice Metel

PANLCCF2/0-12-X

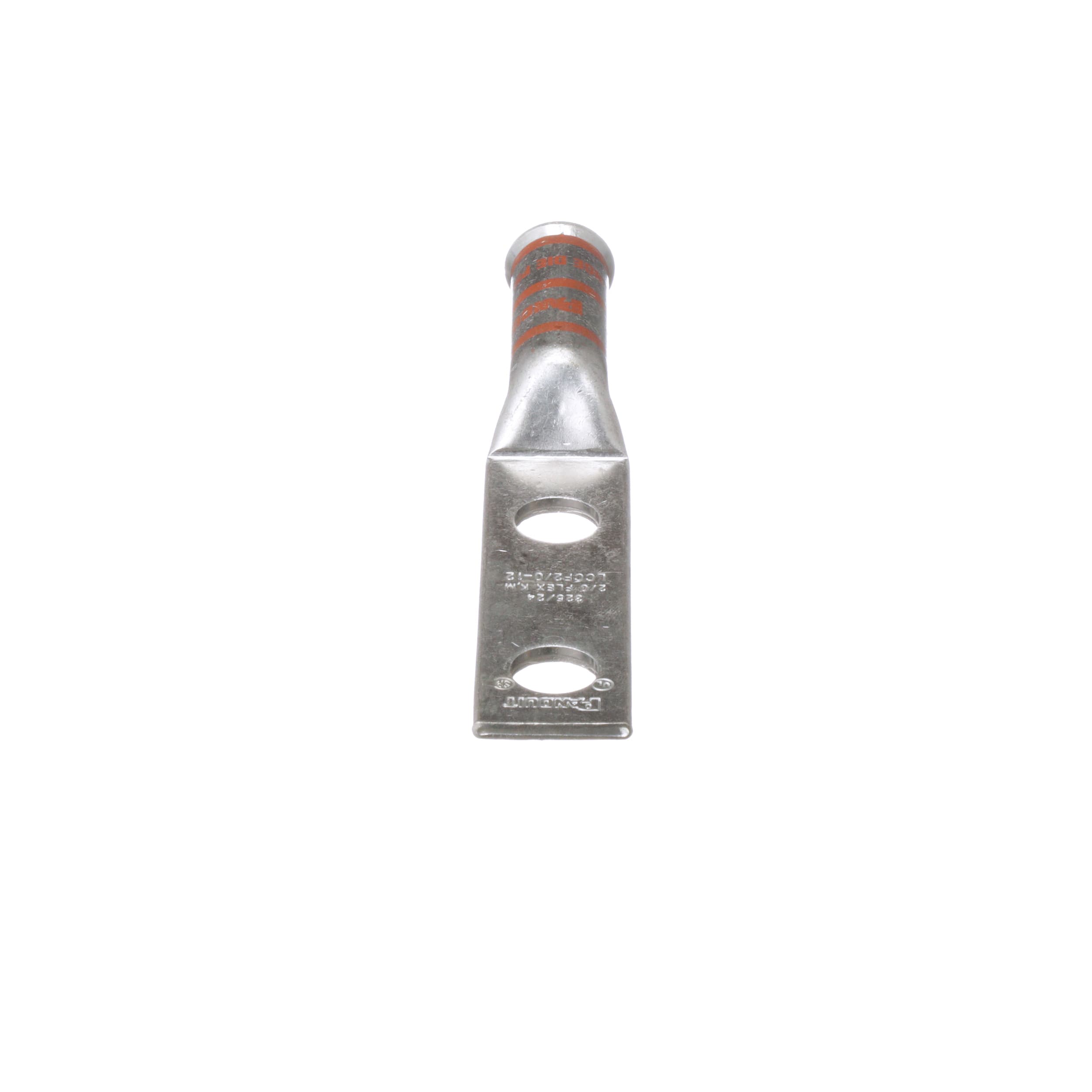

Copper Compression Lug, 2 Hole, 2/0 American Wire Gauge (AWG) Flex, Long Flared Barrel, 1/2 Inch (12.7 mm) Stud, Can be used with flex conductor class: K, M, and Diesel Locomotive, Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance, Flared entry prevents bent back strands when inserting fine strand conductor into barrel, Color-coded barrels marked with Panduit die index numbers for proper crimp die selection, Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments, Tin-plated to inhibit corrosion, UL Listed and CSA Certified to 35 KV and temperature rated to 90 Degrees Celsius when crimped with Panduit crimping tools and dies, Tested by Telcordia - meets NEBS Level 3. Standard Package Quantity 10 pieces.
