PANDUIT - CAPOCORDA PER CAVO RIGIDO, DUE FORI, COL

Accedi per visualizzare prezzi e disponibilità
Imballaggio e Condizioni
25 PZ
Prodotto a catalogo
EAN
74983382996
Codice Sacchi
PTLCD2-14B-Q
Cod. produttore
LCD2-14B-Q
Codice Metel
PANLCD2-14B-Q

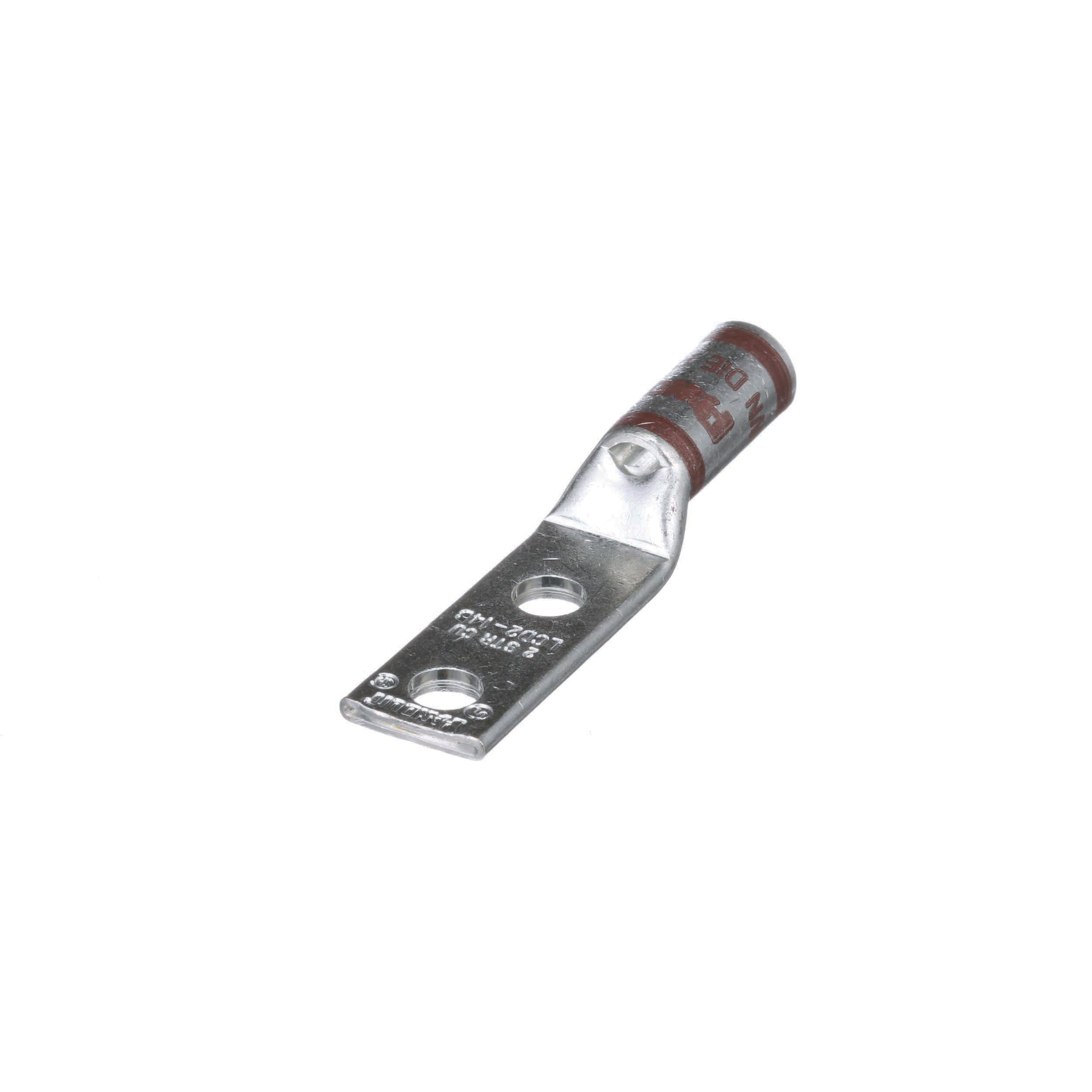

Copper Compression Lug, 2 Hole, No. 2 American Wire Gauge (AWG), 1/4 Inch (6.4 mm) Stud, 0.75 Inch (19.1 mm) Hole Spacing, Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection, Inspection window to visually assure full conductor insertion, Tin-plated to inhibit corrosion, UL Listed and CSA Certified to 35 KV and temperature rated to 90 Degrees C when crimped with Panduit and specified competitor crimping tools and dies, UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit Uni-Die Dieless Crimping Tools, Tested by Telcordia - meets NEBS Level 3, American Bureau of Shipping Approved. Standard Package Quantity 25 pieces.
