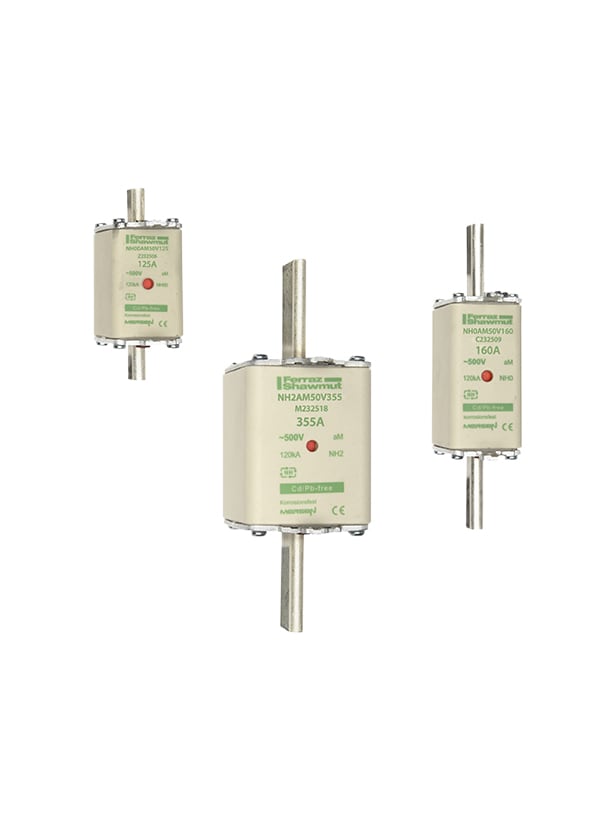

MERSEN - FUS. NH BT TAGLIA 3 - 500VAC AM 500A

copiacopia
MERSEN - FUS. NH BT TAGLIA 3 - 500VAC AM 500A

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • classe di funzionamento - AM (protezione parziale commutatori)

  • corrente di dimensionamento - 500 A

  • Dimensione - HPC3

  • tensione di dimensionamento - 500 V

  • esecuzione indicatore - altri

Imballaggio e Condizioni

  • 1 PZ

  • Prodotto a catalogo

EAN

8430399026947

Codice Sacchi

MEV232525

Cod. produttore

V232525

Codice Metel

XESV232525

classe di funzionamento:

AM (protezione parziale commutatori)

corrente di dimensionamento:

500 A

Dimensione:

HPC3

tensione di dimensionamento:

500 V

esecuzione indicatore:

altri

potere di interruzione nominale:

120 kA

linguette in metallo isolate (IMGL):

no

The NH system is classified among plug-in fuse systems and is composed of: fuse-base (possibly including terminal covers and phase barriers) fuse-link with blade contact fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current it must be handled by a qualified professional. Type aM NH fuse-links are partial-range breaking capacity fuse-links, used to protect motor circuits as they are strongly current-limiting and have low power losses. They interrupt currents from 6.3 times In up to their maximum breaking capacity and are therefore suited for short-circuit protection only. They must be associated with other switchgear for protection against overloads. These fuse-links can have a rated current equal to the motors nominal current.
