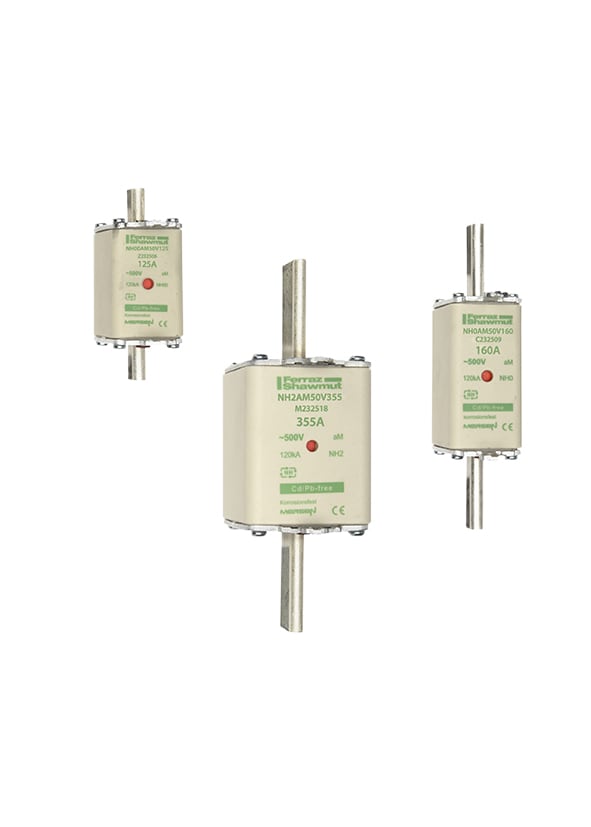

MERSEN - FUS. NH BT TAGLIA 3 - 500VAC AM 315A

copiacopia
MERSEN - FUS. NH BT TAGLIA 3 - 500VAC AM 315A

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • classe di funzionamento - AM (protezione parziale commutatori)

  • corrente di dimensionamento - 315 A

  • tensione di dimensionamento - 500 V

  • Dimensione - HPC3

  • potere di interruzione nominale - 120 kA

Imballaggio e Condizioni

  • 1 PZ

  • Prodotto a catalogo

EAN

8430399026893

Codice Sacchi

MEP232520

Cod. produttore

P232520

Codice Metel

XESP232520

classe di funzionamento:

AM (protezione parziale commutatori)

corrente di dimensionamento:

315 A

tensione di dimensionamento:

500 V

Dimensione:

HPC3

potere di interruzione nominale:

120 kA

linguette in metallo isolate (IMGL):

no

esecuzione indicatore:

altri

The NH system is classified among plug-in fuse systems and is composed of: fuse-base (possibly including terminal covers and phase barriers) fuse-link with blade contact fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current it must be handled by a qualified professional. Type aM NH fuse-links are partial-range breaking capacity fuse-links, used to protect motor circuits as they are strongly current-limiting and have low power losses. They interrupt currents from 6.3 times In up to their maximum breaking capacity and are therefore suited for short-circuit protection only. They must be associated with other switchgear for protection against overloads. These fuse-links can have a rated current equal to the motors nominal current.
