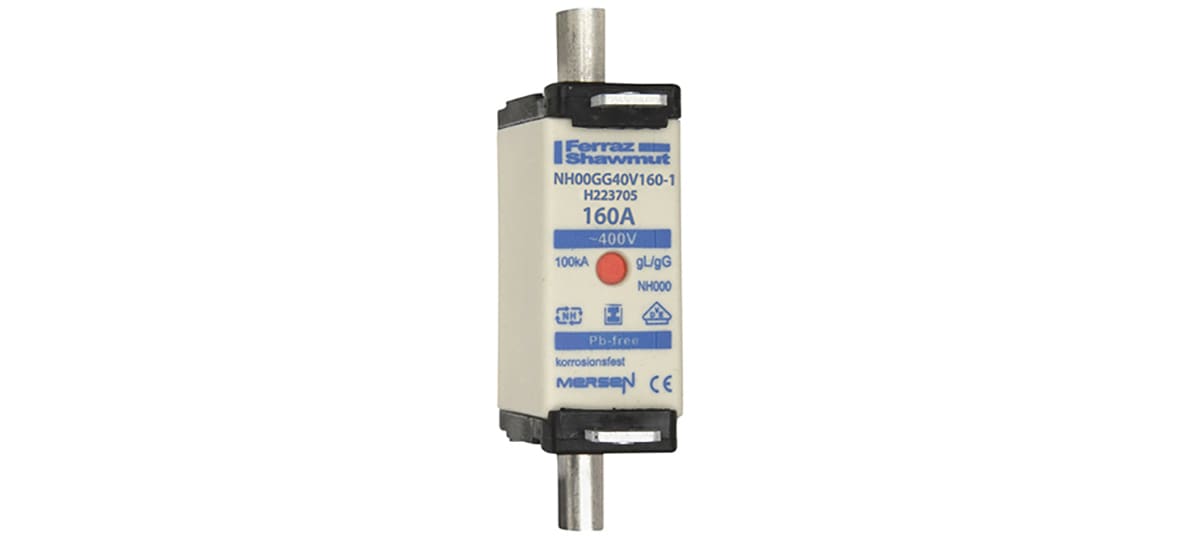

MERSEN - FUS. NH BT T.00 PROT. ISOLANTE 400V GG 1 H223705

copiacopia
MERSEN - FUS. NH BT T.00 PROT. ISOLANTE 400V GG 1 H223705

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • corrente di dimensionamento - 160 A

  • classe di funzionamento - GL/GG (protezione completa di linee/apparecchi)

  • tensione di dimensionamento - 400 V

  • Dimensione - HPC00

  • linguette in metallo isolate (IMGL) -

Imballaggio e Condizioni

  • 1 PZ

  • Prodotto a catalogo

EAN

8430399021829

Codice Sacchi

MEH223705

Cod. produttore

H223705

Codice Metel

XESH223705

corrente di dimensionamento:

160 A

classe di funzionamento:

GL/GG (protezione completa di linee/apparecchi)

tensione di dimensionamento:

400 V

Dimensione:

HPC00

linguette in metallo isolate (IMGL):

potere di interruzione nominale:

100 kA

esecuzione indicatore:

altri

The NH system is classified among plug-in fuse systems and is composed of: fuse-base (possibly including terminal covers and phase barriers) fuse-link with blade contact fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current it must be handled by a qualified professional. Type gG NH fuse-links are full range breaking capacity fuse-links and are used to protect cables and equipment. They can interrupt any current surge, from the lowest fusing current up to their breaking capacity, and so can be used alone as protection. They also protect electrical devices and industrial set-ups from the electrodynamic effects of very high short-circuit currents.
