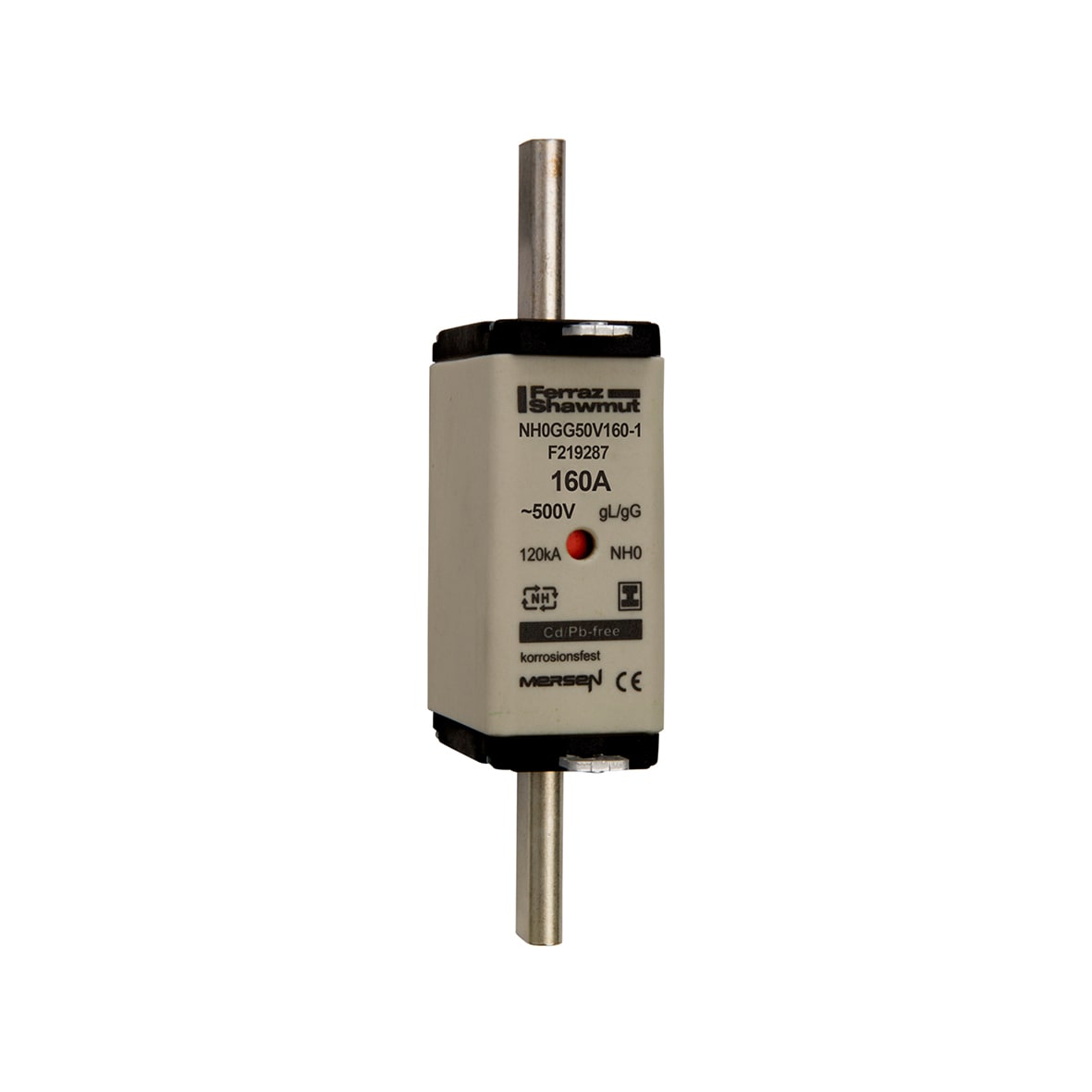

MERSEN - FUS. NH BT T.0 PROT ISOLANTE 500VAC GG 1 F219287

copiacopia
MERSEN - FUS. NH BT T.0 PROT ISOLANTE 500VAC GG 1 F219287

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • corrente di dimensionamento - 160 A

  • classe di funzionamento - GL/GG (protezione completa di linee/apparecchi)

  • Dimensione - HPC0

  • tensione di dimensionamento - 500 V

  • potere di interruzione nominale - 120 kA

Imballaggio e Condizioni

  • 1 PZ

  • Prodotto a catalogo

EAN

8430399001630

Codice Sacchi

MEF219287

Cod. produttore

F219287

Codice Metel

XESF219287

corrente di dimensionamento:

160 A

classe di funzionamento:

GL/GG (protezione completa di linee/apparecchi)

Dimensione:

HPC0

tensione di dimensionamento:

500 V

potere di interruzione nominale:

120 kA

esecuzione indicatore:

altri

linguette in metallo isolate (IMGL):

The NH system is classified among plug-in fuse systems and is composed of: fuse-base (possibly including terminal covers and phase barriers) fuse-link with blade contact fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current it must be handled by a qualified professional. Type gG NH fuse-links are full range breaking capacity fuse-links and are used to protect cables and equipment. They can interrupt any current surge, from the lowest fusing current up to their breaking capacity, and so can be used alone as protection. They also protect electrical devices and industrial set-ups from the electrodynamic effects of very high short-circuit currents.
