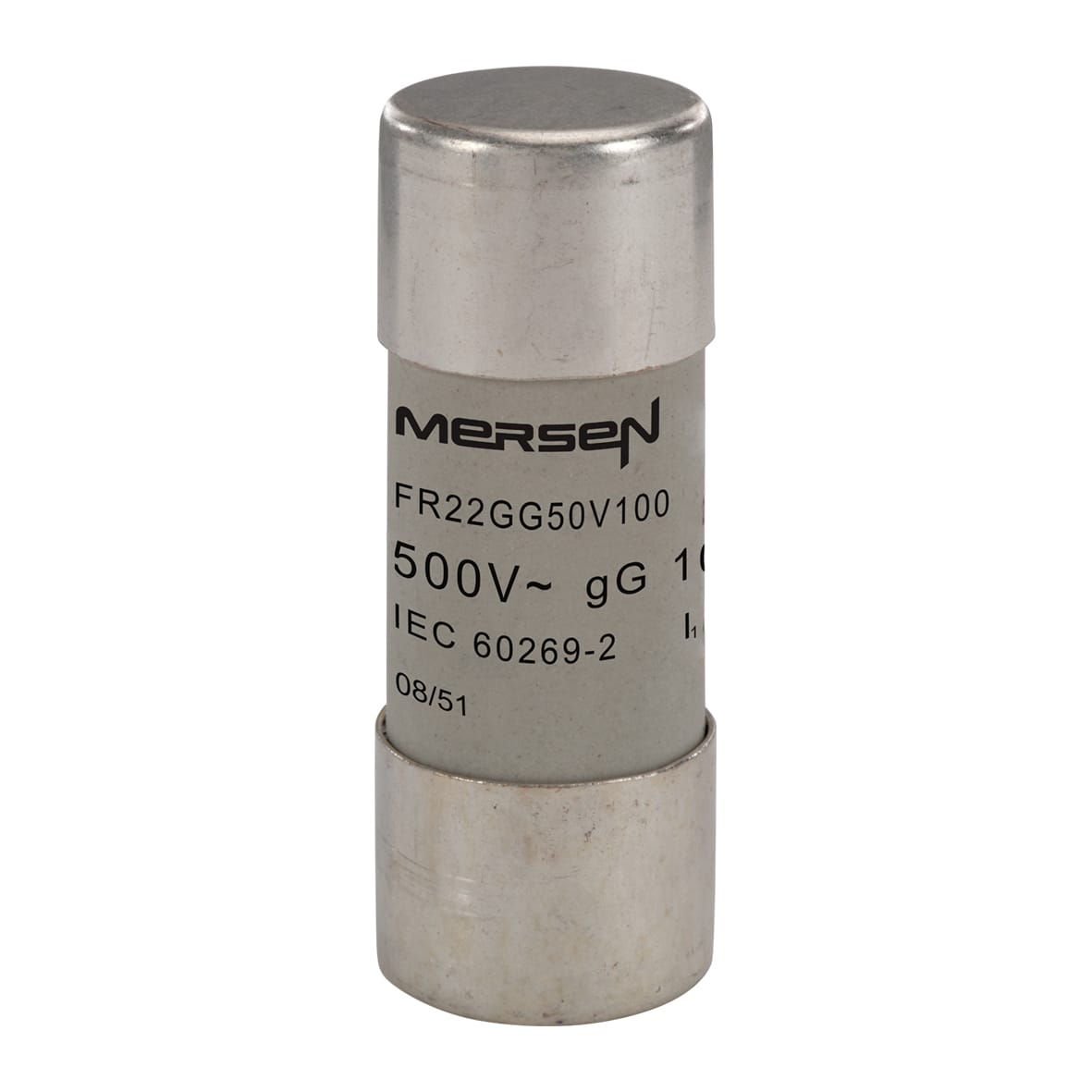

MERSEN - FUS. BT GG 22 X 58 - 500VAC 100A
Accedi per visualizzare prezzi e disponibilità
Caratteristiche principali
Dimensione - 22×58 mm
Corrente nominale - 100 A
Tensione nominale - 500 V
potere di interruzione - 120 kA
classe di funzionamento - GL/GG (protezione completa di linee/apparecchi)
Imballaggio e Condizioni
1 PZ
Prodotto a catalogo
EAN
8430399009223
Codice Sacchi
MEE218205
Cod. produttore
E218205
Codice Metel
XESE218205
Dimensione:
22×58 mm
Corrente nominale:
100 A
Tensione nominale:
500 V
potere di interruzione:
120 kA
classe di funzionamento:
GL/GG (protezione completa di linee/apparecchi)
frequenza d’esercizio:
48 ÷ 62 Hz
Mersen aM and gG fuse-links cover a wide range of physical sizes and ampere ratings for 400, 500, and 690VAC for protection in electrical distribution circuits and various industrial applications. Most ratings are available in size 8x31 and size 10x38 with an optional indicator, and in size 14x51 and 22x58 with an optional striker to activate an auxiliary contact. Size 10x38 is also available with striker. All cylindrical fuse-links have ceramic bodies and silver-plated contacts. Cylindrical fuse-links gG are used for the protection of cables, motors and LV-networks. They limit and cut off unacceptable overcurrents and short-circuit currents up to their nominal breaking capacity. Cylindrical fuse-links gG also protect electrical equipment and installations against the dynamic effect of high short-currents. Our technology and process was designed to ensure highly reliable technical performance.
Scheda prodotto fornita dal fornitore
Scarica documento
