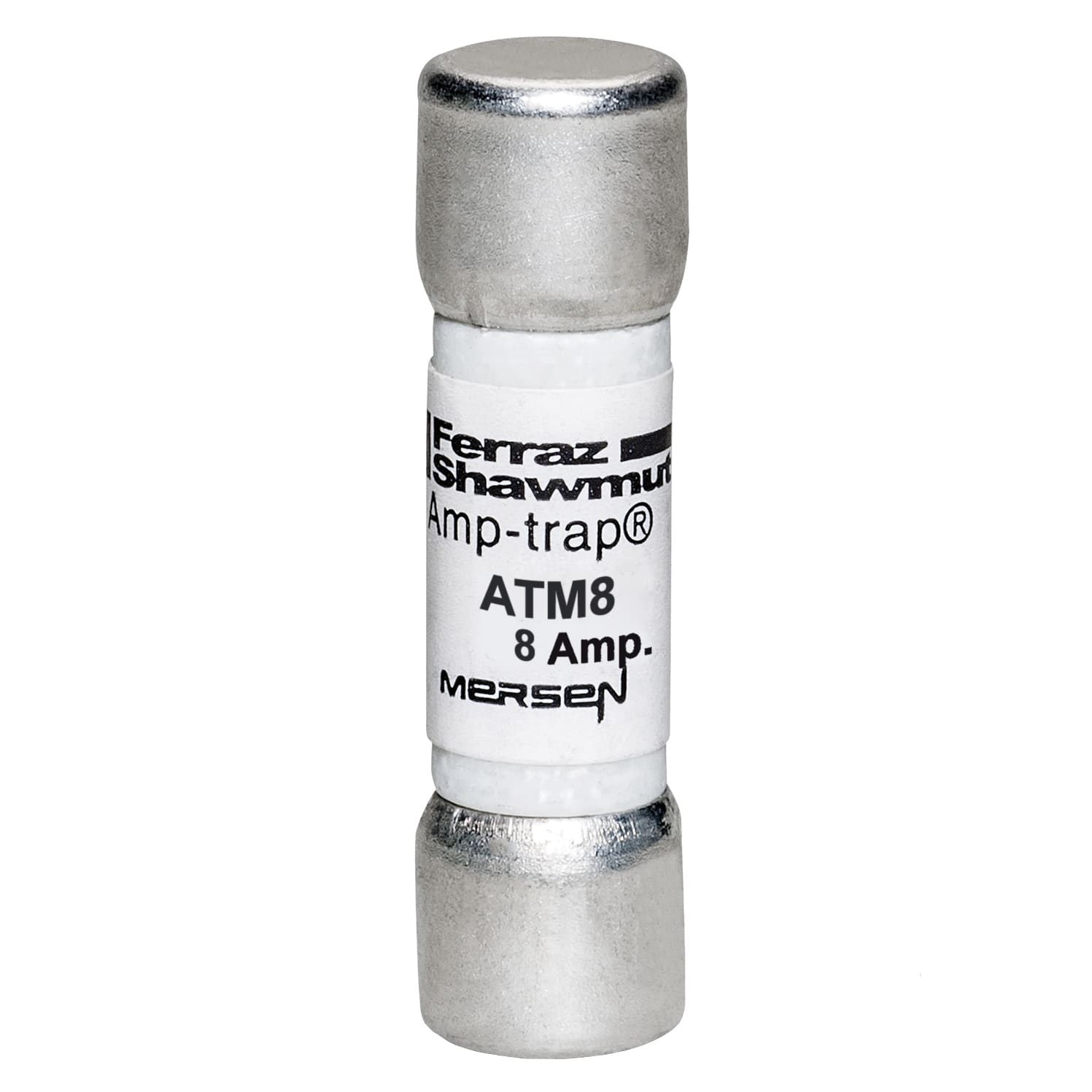

MERSEN - FUS. ATM (MIDGET) 600VAC/600VDC 8A

copiacopia
MERSEN - FUS. ATM (MIDGET) 600VAC/600VDC 8A

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • corrente di dimensionamento - 8 A

  • classe di funzionamento - altri

  • caratteristica di intervento - M (Midget)

  • potere di interruzione - 100 kA

  • frequenza d’esercizio - 48 ÷ 62 Hz

Imballaggio e Condizioni

  • 10 PZ

  • Prodotto a catalogo

EAN

782001900779

Codice Sacchi

MEATM8

Cod. produttore

ATM8

Codice Metel

XESATM8

corrente di dimensionamento:

8 A

classe di funzionamento:

altri

caratteristica di intervento:

M (Midget)

potere di interruzione:

100 kA

frequenza d’esercizio:

48 ÷ 62 Hz

Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
