LEDVANCE - Luce Biologica LEDV Zigbee, Kit Illuminazione Human Centric, Alfanum. HCL LS S TW ZB KIT FS1

copiacopia

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • Potenza della lampada per metro - 21.6 W

  • Massima tensione di lavoro - 220÷240 V

  • Grado di protezione (IP) - IP00

  • Temperatura di colore correlata - 2700÷6500 K

  • Tipo di montaggio - Struttura

Imballaggio e Condizioni

  • 4 PZ

  • Prodotto a catalogo

EAN

4058075671270

Codice Sacchi

OSHCLLSTWKIT

Cod. produttore

HCLLSTWKIT

Codice Metel

LDVHCLLSTWKIT

Potenza della lampada per metro:

21.6 W

Massima tensione di lavoro:

220÷240 V

Grado di protezione (IP):

IP00

Temperatura di colore correlata:

2700÷6500 K

Tipo di montaggio:

Struttura

Numero di corpi luminosi per ogni metro:

120

Colore luce:

Bianco

Tipo di tensione di alimentazione:

DC

Indice di resa cromatica CRI:

90-100 (classe 1A)

Larghezza:

10 mm

Tipo cablaggio:

Apparecchio di servizio LED comandato da corrente

Potenza lampada per piede:

21.6 W

Classe di protezione secondo IEC 61140:

II

Autoadesivo:

Sì

Flusso luminoso regolabile:

No

Tipo di collegamento:

Altro

Con elemento terminale:

No

Numero di poli:

3

Supporto disponibile IFTTT:

No

Flusso luminoso al metro:

1700 lm

Tipo lampada:

Altro

Numero di corpi luminosi per piede:

394

Angolo del fascio luminoso:

120 °

Vita utile misurazioni L70/B50 a 25 °C:

50000 h

Rendimento luminoso delle lampade:

84 lm/W

Potenza totale:

108 W

Temperatura colore regolabile:

No

Multi-angolo del fascio:

No

Diametro:

1.2 mm

Minimo raggio di curvatura:

33 mm

Con copertura protettiva:

No

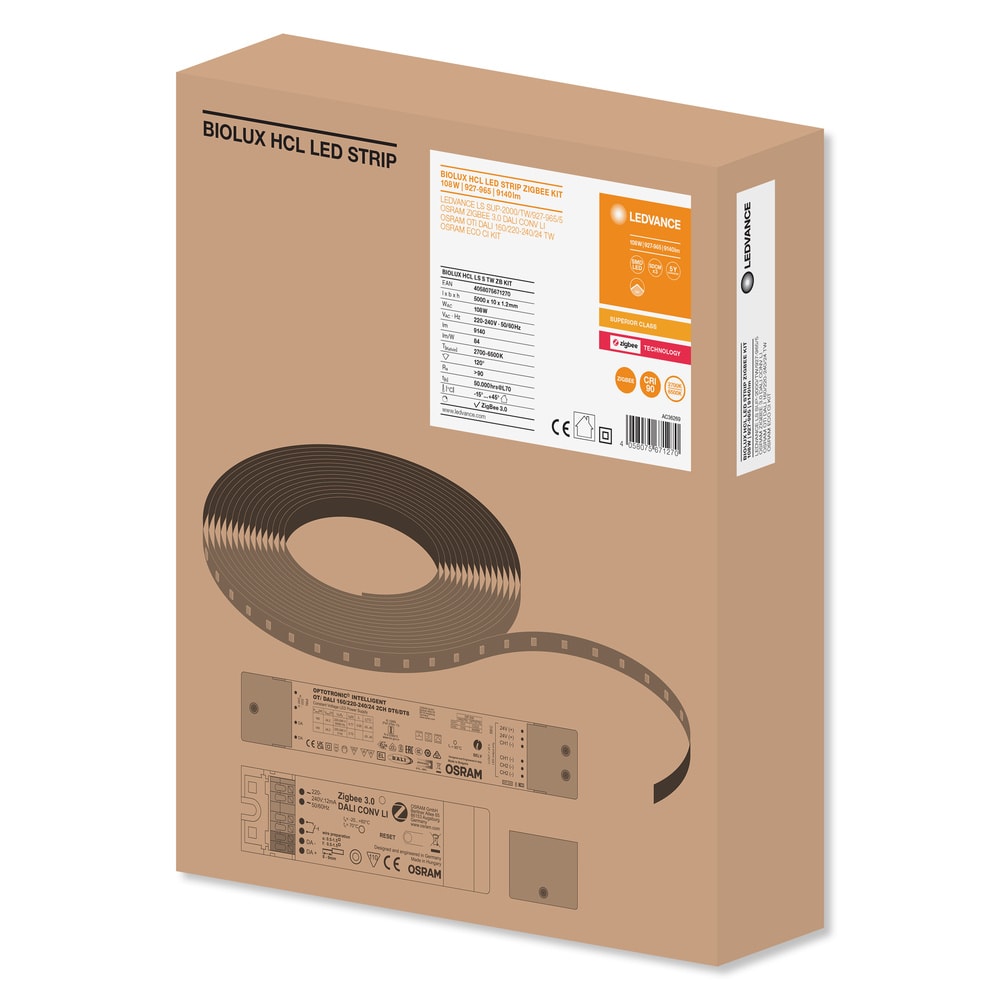

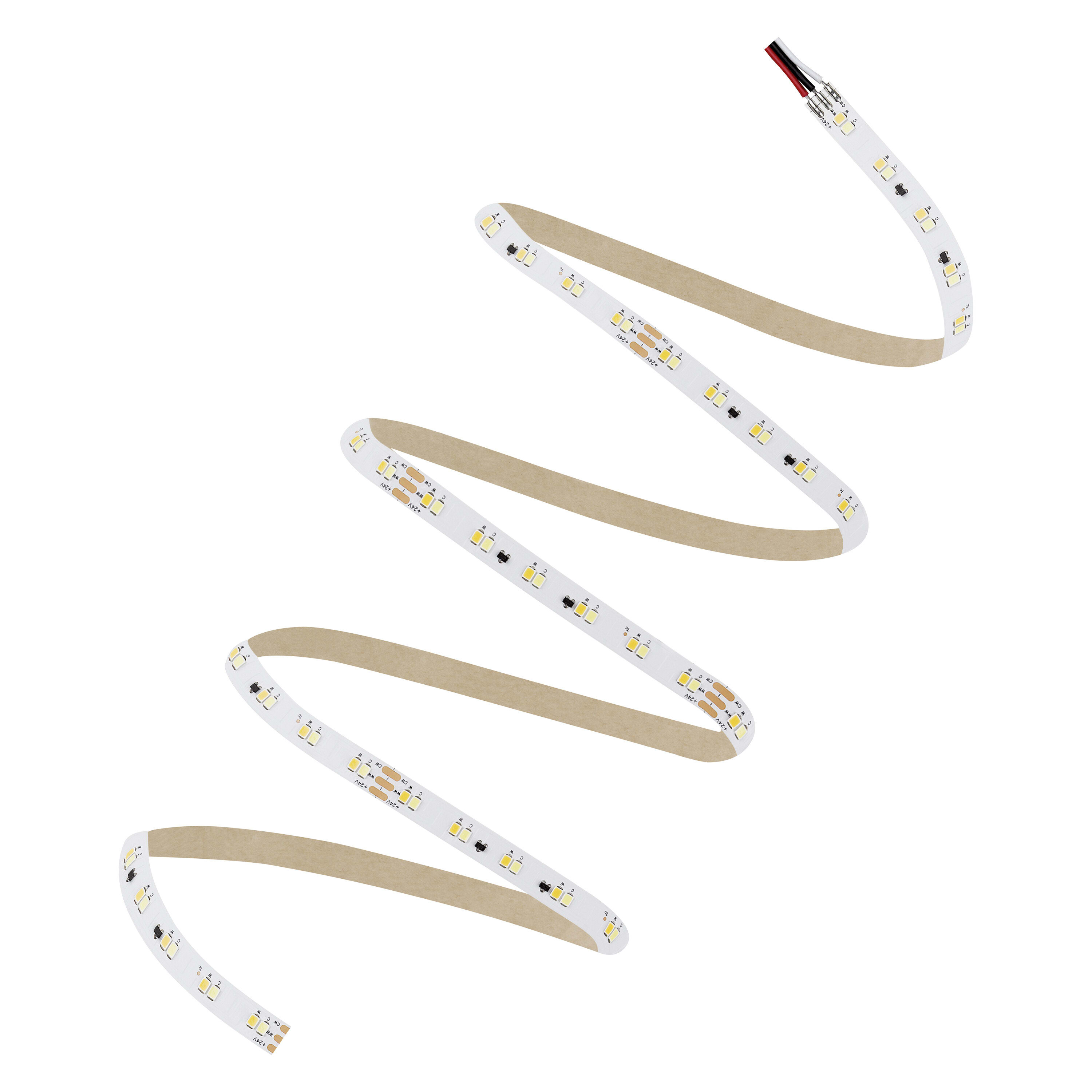

LED Strip KIT, Tunable White, Zigbee. : Zigbee 3.0 certified Tunable White luminaires - LED strips for simple integration into partner systems. Ready for connection to BIOLUX HCL and VIVARES ZIGBEE control unit. Adjustable color temperature via Tunable White: 2,700…6,500 K. Wireless communication between control unit and luminaries via Zigbee protocol. Very high color rendering index Ra: > 90. Smallest cuttable unit: 100 mm. : Set with 5 m LED strip, matching driver and Zigbee adapter. Set products ZB KIT: 1x LED Strip Superior 2000 lm/m TW (4058075436084), OTi Dali driver 160 W/220-240/24 2CH DT6/8 (4062172177948); Zigbee Dali converter (4062172044776) with strain relief ECO CI KIT (4008321392091). Set products IP67 ZB KIT: 1x LED Strip Superior 2000 lm/m TW (4058075436008), OTi Dali driver 160 W/220-240/24 2CH DT6/8 (4062172177948); Zigbee Dali converter (4062172044776) with strain relief ECO CI KIT (4008321392091). BIOLUX HCL CONTROL UNIT for LED Strip control must be ordered separately (EAN 4058075308657). Extensive accessories can be found on LEDVANCE homepage in product category LED Strips. Enables an individual lighting solution in combination with compatible Zigbee HCL lighting controls. Biologically optimized lighting by adapting artificial light to natural daylight course. 5 years BIOLUX HCL system guarantee when operated as part of a BIOLUX HCL system (BIOLUX HCL- - VIVARES ZIGBEE control unit in combination with BIOLUX HCL luminaire(s) - BIOLUX HCL LED strips). : Lighting solution for up to 40 BIOLUX HCL luminaires - BIOLUX HCL LED strips combined mit BIOLUX HCL control unit. KIT available for indoor or outdoor applications. Cove lighting. Hotel and office rooms with little daylight. : LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS). LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS). : The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- - VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app. : Important operating notice and legal disclaimer:
This product is exclusively intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products..
