Fuori produzione

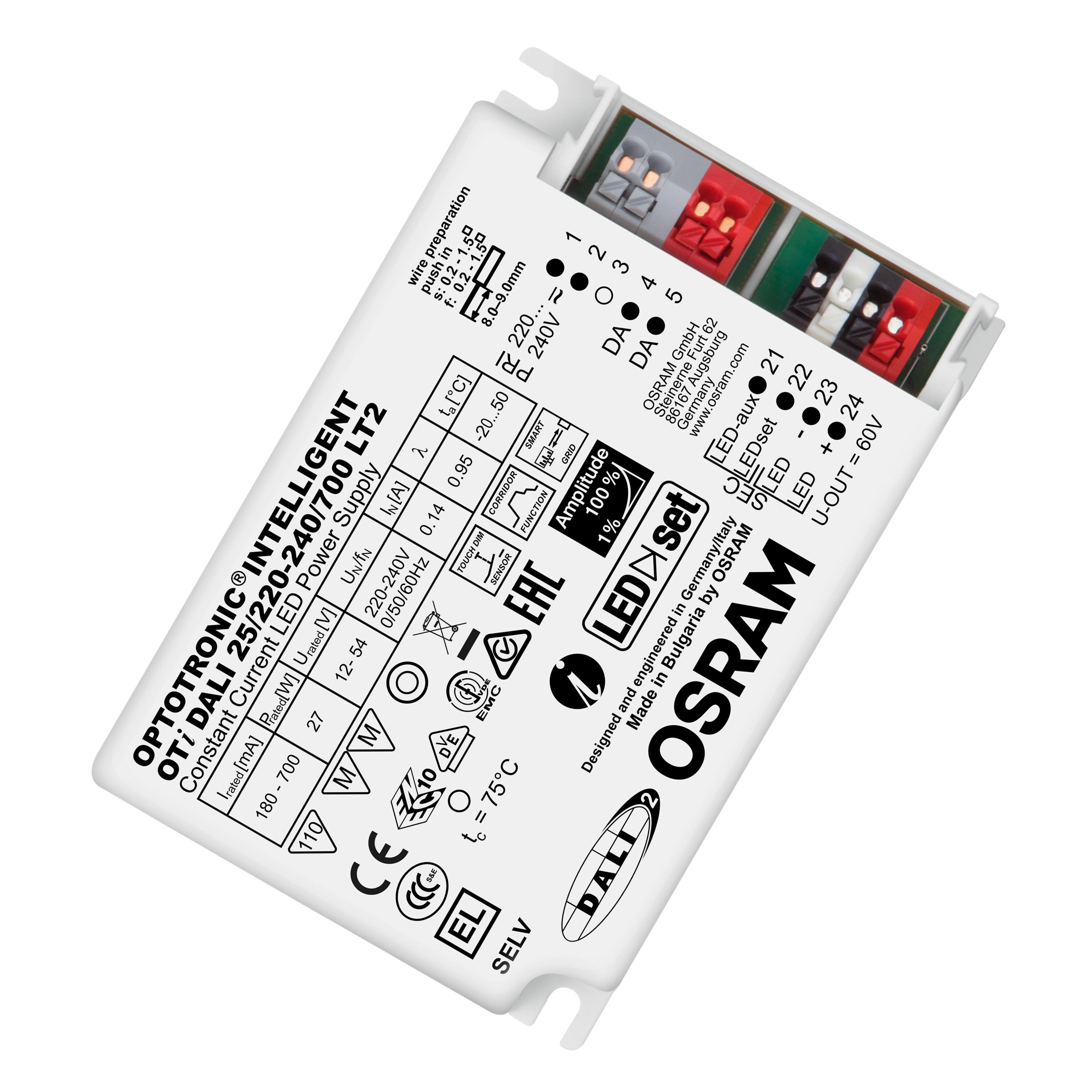

LEDVANCE - Alimentatore LED, Dimmerabile, OSRAM OTI DALI 25/220-240/700 LT2, Universale OTIDALI25700LTG2

copiacopia

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • Tipologia - dinamico

  • Dimming DALI -

  • tensione d’uscita - 12÷54 V

  • potenza d’uscita - 27 W

  • adatto per corrente costante -

Imballaggio e Condizioni

  • 1 PZ

  • Prodotto a catalogo

EAN

4052899488144

Codice Sacchi

OSOTIDALI25700LTG2

Cod. produttore

OTIDALI25700LTG2

Codice Metel

LDVOTIDALI25700LTG2

Tipologia:

dinamico

Dimming DALI:

tensione d’uscita:

12÷54 V

potenza d’uscita:

27 W

adatto per corrente costante:

adatto per tensione costante:

No

grado di protezione (IP):

IP20

Dimming taglio di fase discendente:

No

Dimming 1-10 V:

No

Dimming taglio di fase ascendente:

No

dimming con push-button:

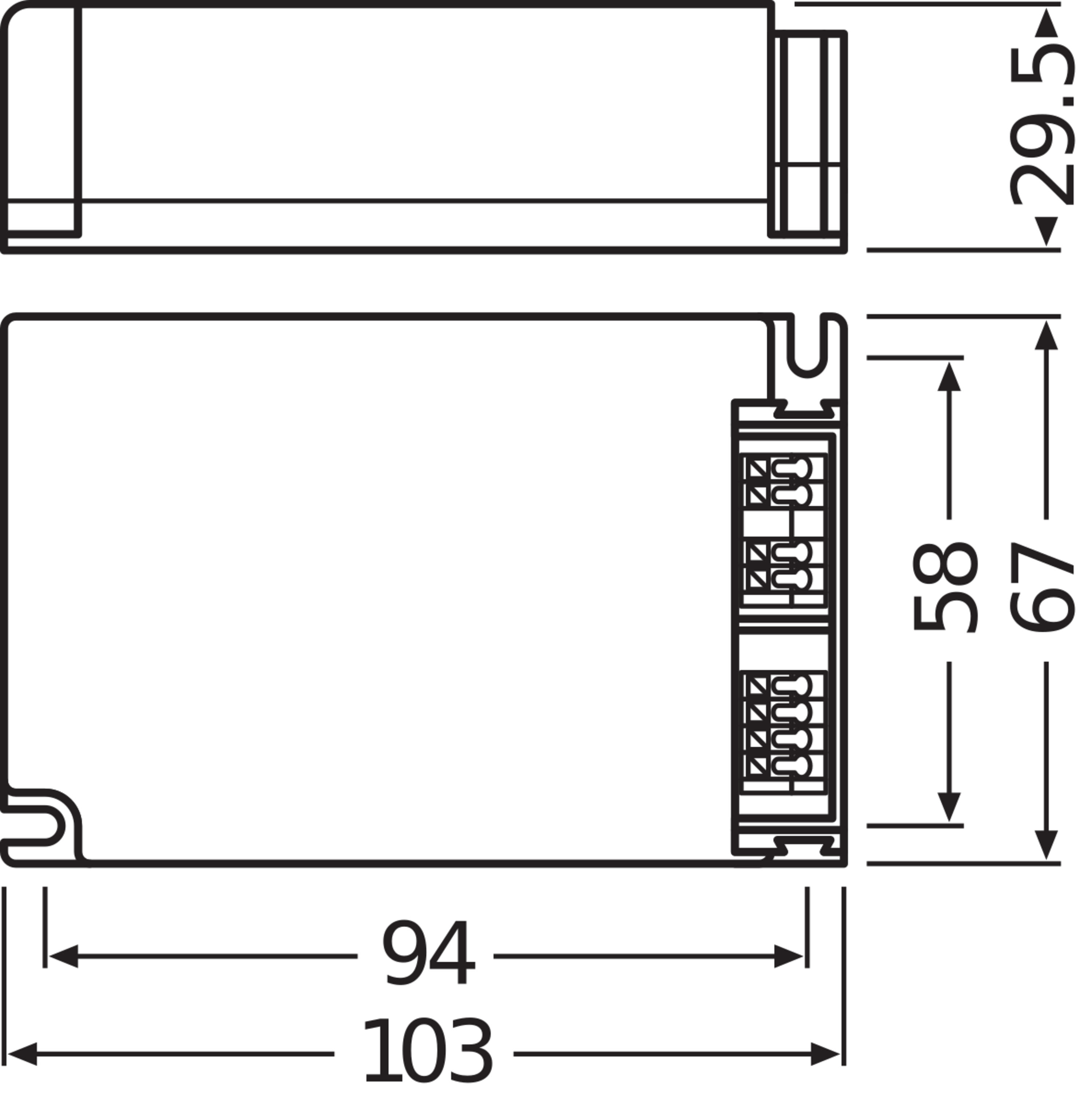

Altezza:

29.5 mm

adatto per uso esterno:

No

Dimming 0-10 V:

No

Larghezza:

67 mm

Lunghezza:

103 mm

adatto per tensione continua (lato primario):

Dimming RF:

No

Dimming Touch and Dim:

Alloggiamento:

alloggiamento in plastica

dimming programmabile:

No

dimming Zigbee:

No

Dimming DMX:

No

classe isolamento:

II

Compatibile con Apple HomeKit:

No

dimming secondo specifiche del produttore:

No

regolazione costante del flusso luminoso:

dimming modulazione tensione di rete:

No

dimming LineSwitch:

No

Compatibile con Google Assistant:

No

Compatibile con Amazon Alexa:

No

dimming DSI:

No

dimming potenziometro (integrato nell\'apparecchio):

No

Dimming Sine Wave Reduction:

No

senza funzione dimming:

No

Supporto disponibile IFTTT:

Vantaggi del prodotto
  • Versatile DALI window driver due to flexible output characteristic
  • Very high efficiency
  • Protection of the system thanks to thermal management and Smart Control
  • High-quality dimming of 1…100 % by amplitude dimming
  • Versatile scope of application due to OSRAM DALI Technology:
    • Easy to use in corridors and restrooms because of three-level Corridor function
    • Touch DIM application: easy to control via pushbutton or sensor
    • Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
    • Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
    • Feedback of power consumption and operating hours (Fit for SMART GRID)
    • Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
    • Caratteristiche del prodotto
    • Supply voltage: 220…240 V
    • Line frequency: 0 Hz | 50 Hz | 60 Hz
    • Line voltage: 198…264 V
    • Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
    • RI suppression: to EN 55015/CISPR 15
    • Line harmonics according to EN 61000-3-2
    • Immunity according to EN 61547
    • Lifetime: up to 100,000 h
    • Type of protection: IP20
    • Independent connection via through-looping (except OTi DALI 15)
    • Aree di applicazione
    • Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
    • Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
    • Suitable for indoor SELV installations
    • Suitable for luminaires of protection classes I and II
    • Suitable for downlights, spotlights and LED panels
    • Installation via Cable Clamp Kit possible (depending on version of product)
